Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis
Principle:
CNJS-SW series sodium hypochlorite generator is a newly and work through electrolysis of salt water , the whole system consists of electrolysis electrode assembly , rectification power and automatic control system , dissolving system , filtering system , ratio device and so on . The salt water is electrolyzed into sodium hypochlorite . Sodium hypochlorite is a kind of disinfection which can gets strong antivirus and bleach power
the sodium chloride solution under the certain voltage effect of the cell, a series of electrochemical reaction within the cell and the resulting solution is the NaClO solution.
Electrode reaction:
The electrode reaction :
Technical parameters:
| Type | Power(V/Hz) | concentration of liquid(g/l) | available chlorine (Kg/h) | Flow (m3/h) | Power consumption (kw) | Size(m) (l×w×h) |
| CNJS-SW50 | 380V/50Hz | 2-3 | 50 | 25 | 206 | 2300*960*1980 |
Product features :
Inlet water temperature : 5 ℃ ～ + 35 ℃；
Inlet water pressure :0.2 ~ 0.4 Mpa ；
Water consumption :According to the local water conditions ；
The electrolyte temperature rise:<5 ℃ ；
Rated power :According to the specific choice model;
flow chart :
Product system:
A , Automatic dissolving salt tank :Including Seawater lift pump, filter device
B , Sodium hypochlorite generator host machine :Including electrolytic cell , electrolysis power , intelligent control center PLC , the control element, man-machine interface , PC communication module, the operator panel, the host stand, electric valves, electrical power distribution system
C , Sodium hypochlorite solution storage tank :including hydrogen storage tank , exhaust equipment
D, Automatic dosing and on-line monitoring system: including the inverter , corrosion metering dosing pump , online residual chlorine monitor , and the closed-loop control of chlorine
E , Online instrument series : Production water pressure monitoring , dilute brine online salinity monitoring , temperature controller , flammable gas monitoring sensor , these monitoring instruments are all included alarm signal output
Advantage of on-site sodium hypochlorite generator
CNJS technology :Using marine – grade high – frequency Other brand :Large volume, high energy
voltage constant current power supply , low heat , consumption, poor stability, not integrated.
Small volume , stability and high security, integrated
workshop :
Product Tags:
|
|

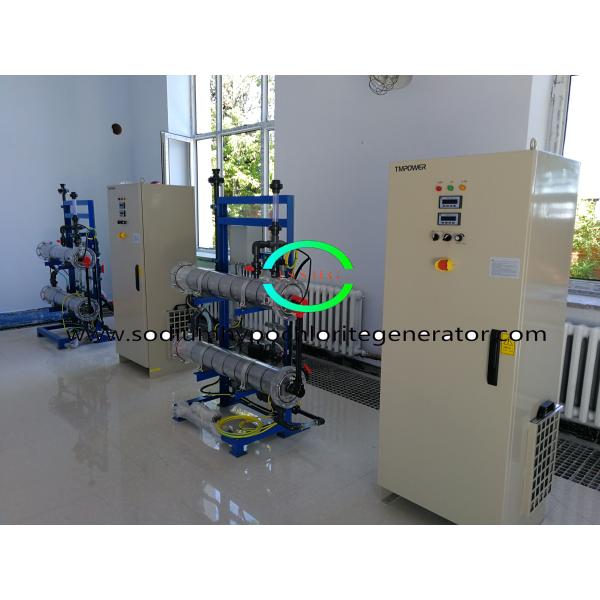

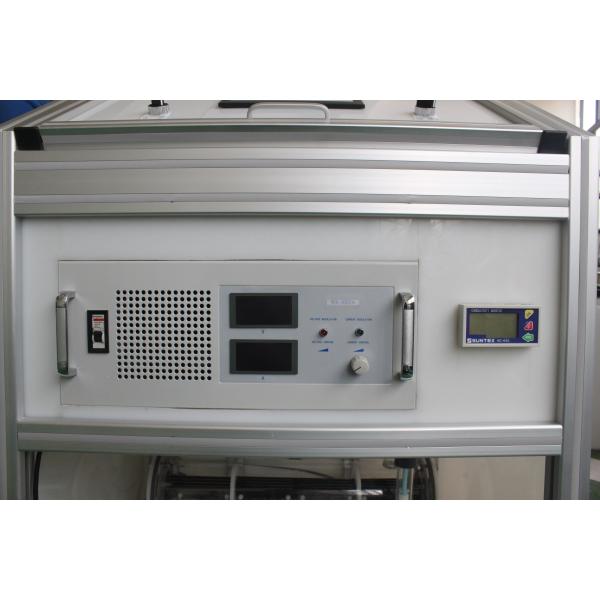

Intelligent Modular Seawater Electrochlorination Systems Sodium Hypochlorite Electrolysis Images
|
